Kepital TC3020

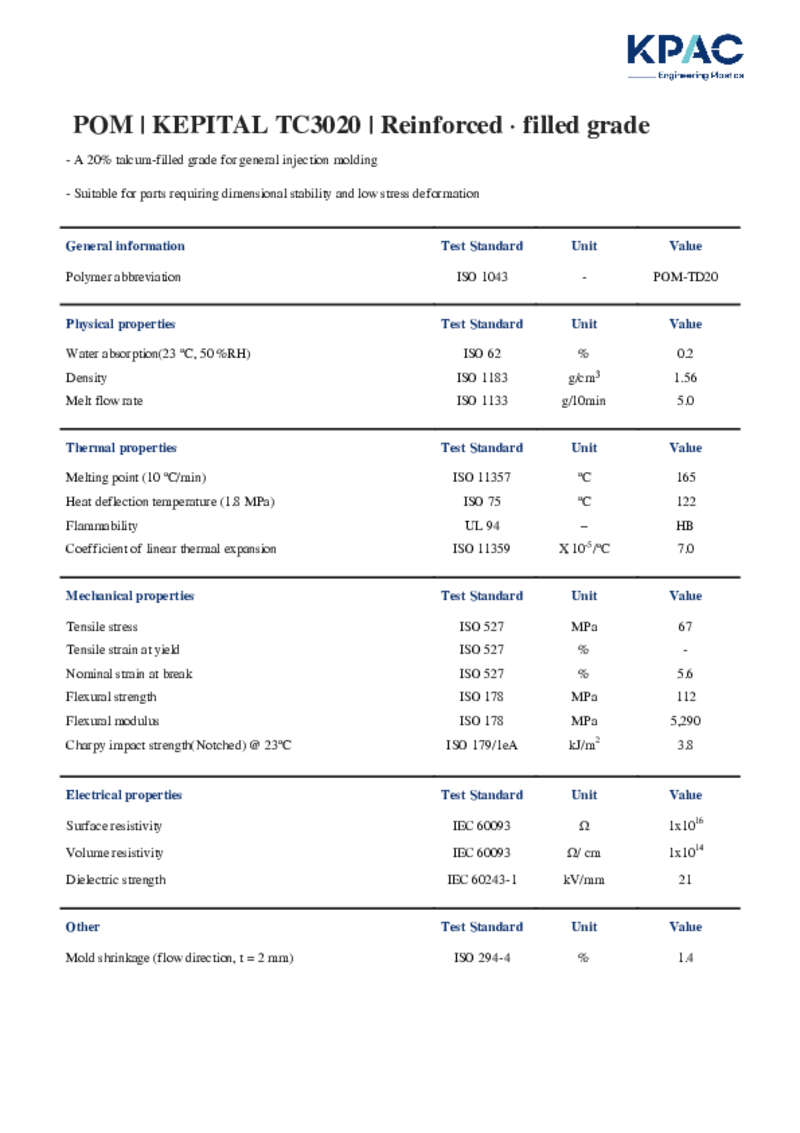

Produkt anfragen Datenblatt herunterladen Telefonische Beratung +49 40 727702-0
<font face="Times New Roman"> </font>
Talcum reinforced and low viscosity grade for general injection molding. It’s suitable for parts
requiring more reducing deformation than that of standard grade under the same stress. Exhibits
excellent dimensional accuracy.
| Properties | Test condition | Method | Unit | Value | |
|---|---|---|---|---|---|
| Physical | Density | ISO 1183 | g/cm³ | 1,56 | |
| Physical | Melt Flow Rate | ISO 1133 | g/10min | 5 | |
| Physical | Molding Shrinkage (Flow Direction) | t 3mm, Ø 100mm | KEP Method | % | 1,6 |
| Thermal | Flammability | UL94 | Class | HB | |
| Mechanical | Tensile Strength | 23˚C | ISO 527-1,2 | MPa | 67 |
| Mechanical | Strain at Break | 23˚C | ISO 527-1,2 | % | 5,6 |
| Mechanical | Flexural Strength | 23˚C | ISO 178 | MPa | 112 |
| Mechanical | Flexural Modulus | 23˚C | ISO 178 | MPa | 5.290 |
| Mechanical | Charpy Notched Impact Strength | ISO 179/1eA | kJ/m² | 3,8 | |
| Electrical | Surface Resistivity | IEC 60093 | Ω | 1x 10^16 | |
| Electrical | Volume Resistivity | IEC 60093 | Ω • cm | 1x 10^14 | |
| Electrical | Dielectric Strength | IEC 60243-1 | kV /mm | 21 |
