Kepital TE-24

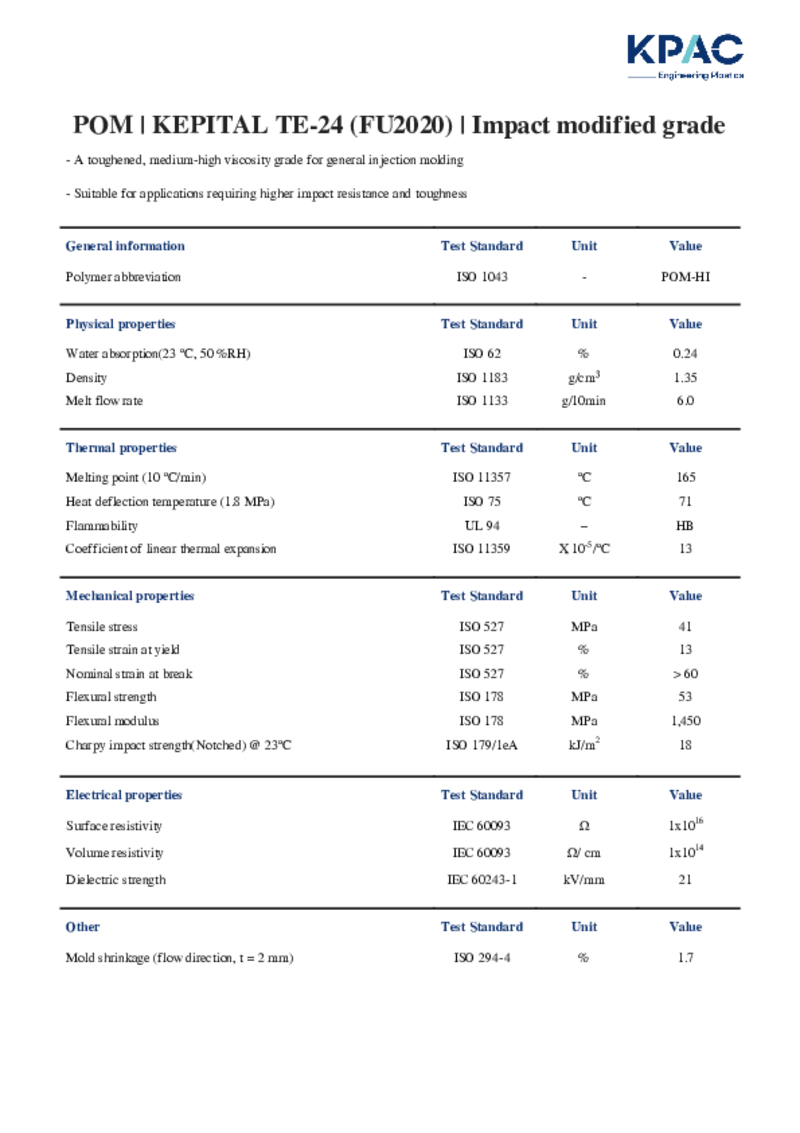

Produkt anfragen   Datenblatt herunterladen    Telefonische Beratung +49 40 727702-0

<font face="Times New Roman"> </font>

A medium-high viscosity grade for general injection molding. It was modified with elastomer,

and so suitable for parts requiring higher impact resistance and toughness.

Properties Test condition Method Unit Value
Physical Density ISO 1183 g/cm³ 1,35
Physical Melt Flow Rate ISO 1133 g/10min 6
Physical Molding Shrinkage (Flow Direction) t 3mm, Ø 100mm KEP Method % 1,7
Thermal Heat Deflection Temperature (HDT) 1.8 MPa ISO 75-1,2 ˚C 66
Thermal Flammability UL94 Class HB
Mechanical Tensile Strength 23˚C ISO 527-1,2 MPa 41
Mechanical Flexural Strength 23˚C ISO 178 MPa 53
Mechanical Flexural Modulus 23˚C ISO 178 MPa 1.450
Mechanical Charpy Notched Impact Strength ISO 179/1eA kJ/m² 18
Mechanical Nominal Strain at Break 23˚C ISO 527-1,2 % >60
Electrical Surface Resistivity IEC 60093 Ω 1x 10^16
Electrical Volume Resistivity IEC 60093 Ω • cm 1x 10^14
Electrical Dielectric Strength IEC 60243-1 kV /mm 21
