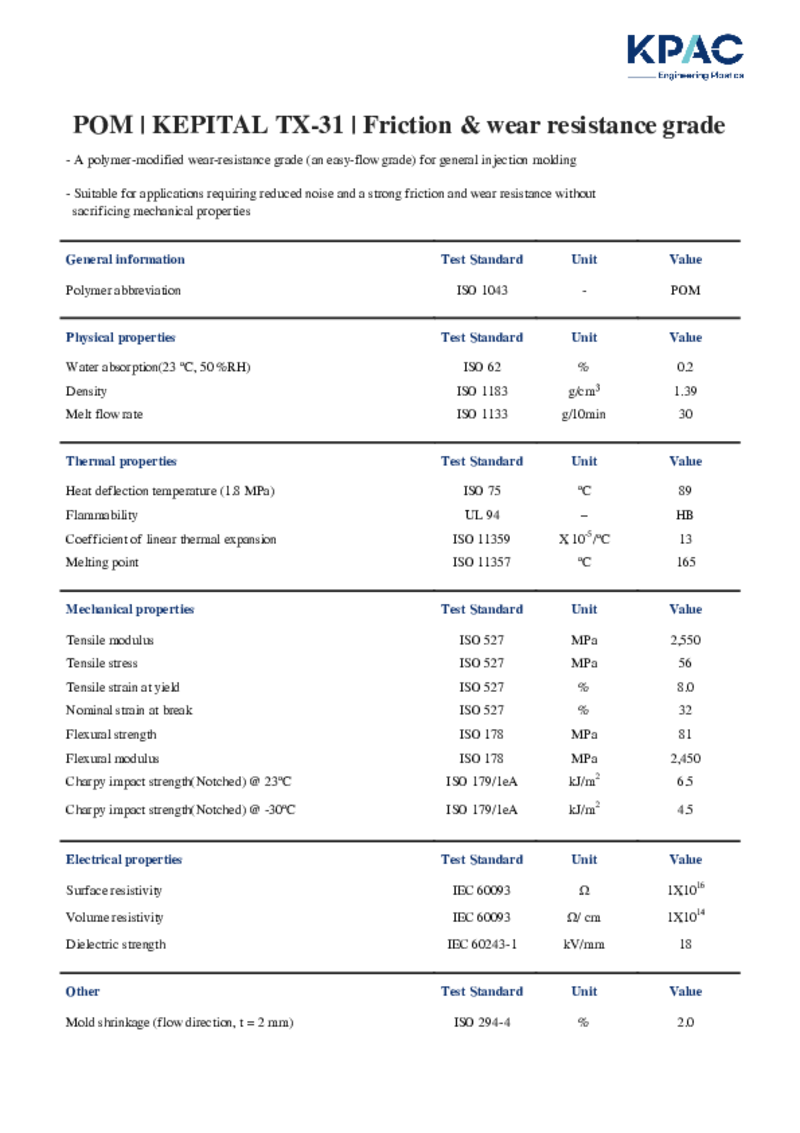

Kepital TX-31
Produkt anfragen Datenblatt herunterladen Telefonische Beratung +49 40 727702-0
<font face="Times New Roman"> </font>
An easy flowing grade for general injection molding. It is suitable for use requiring reduced
noise and a good friction & wear resistance without sacrificing mechanical properties.
| Properties | Test condition | Method | Unit | Value | |
|---|---|---|---|---|---|
| Physical | Density | ISO 1183 | g/cm³ | 1,39 | |
| Physical | Melt Flow Rate | ISO 1133 | g/10min | 30 | |
| Physical | Molding Shrinkage (Flow Direction) | t 3mm, Ø 100mm | KEP Method | % | 2 |
| Thermal | Heat Deflection Temperature (HDT) | 1.8 MPa | ISO 75-1,2 | ˚C | 89 |
| Thermal | Flammability | UL94 | Class | HB | |
| Mechanical | Tensile Strength | 23˚C | ISO 527-1,2 | MPa | 56 |
| Mechanical | Flexural Strength | 23˚C | ISO 178 | MPa | 80 |
| Mechanical | Flexural Modulus | 23˚C | ISO 178 | MPa | 2400 |
| Mechanical | Charpy Notched Impact Strength | ISO 179/1eA | kJ/m² | 7 | |
| Mechanical | Nominal Strain at Break | 23˚C | ISO 527-1,2 | % | 35 |
| Electrical | Surface Resistivity | IEC 60093 | Ω | 1• 10^16 | |
| Electrical | Volume Resistivity | IEC 60093 | Ω • cm | 1• 10^14 | |
| Electrical | Dielectric Strength | IEC 60243-1 | kV /mm | 18 |
